Nitrogenema™ Glove Box

NITROGENEMA™ Glove Box

Achieve and maintain low humidity or oxygen levels

HEPA filtration to house exhaust with one way check valve

Gas metering system to conserve inert gas and use it most efficiently

PROCESS

FSI understands that time is crucial to processes and applications in your lab, so we have put engineering controls in place to minimize the purge time and maximize your inert gas savings.

CONTAINMENT

This enclosure is capable of protecting your process by nearly eliminating moisture or oxygen with the flow of inert gas. Don’t spend tens of thousands of dollars on a cumbersome metal isolator, see how the Flow Sciences END Series can solve your application needs.

                  APPLICATIONS

  • Pyrophoric Substances
  • Hygroscopic Substances
  • Substances that react with Oxygen
  • Reactive substances
  • Weighing
  • Mixing
  • Dispensing
  • And more…

FEATURES & BENEFITS

SAFETY

With HEPA filtration, a one way check valve, and the ability to connect to a house exhaust system, this product & personnel safety enclosure provides both the operator and the application inside the highest level of safety available. With Flow Sciences’ reputation for safety, and the ability to engineer containment for your application, it really does put this enclosure in a class of its own.

SEALED DOOR / TRANSFER PORT


For ease of loading and unloading equipment, the END series is available with a sealed door and a transfer port for sample loading and unloading.

DESIGN

Designed as the next step in containment above the FSI Hybrid Isolator, this unit is able to effectively contain using HEPA clean air inlet and HEPA air out. This creates laminar airflow across the interior. The Glovebox Workstation is equipped with dual 4” thick HEPA filters that can be recirculated into the lab or sent directly to house exhaust.

BASE OPTIONS


The chemically resistant phenolic base is dished to maintain spills and coated to protect the work surface from harmful chemicals.

FRONT LIFT DOOR

The glove ports sit in a front lift door that opens vertically to effectively load and unload equipment. This door is hinged for ease of use.

CONSTRUCTION

FSI uses clear acrylic walls with a static dissipative coating to reduce static in the enclosure.

POPULAR CONFIGURATIONS

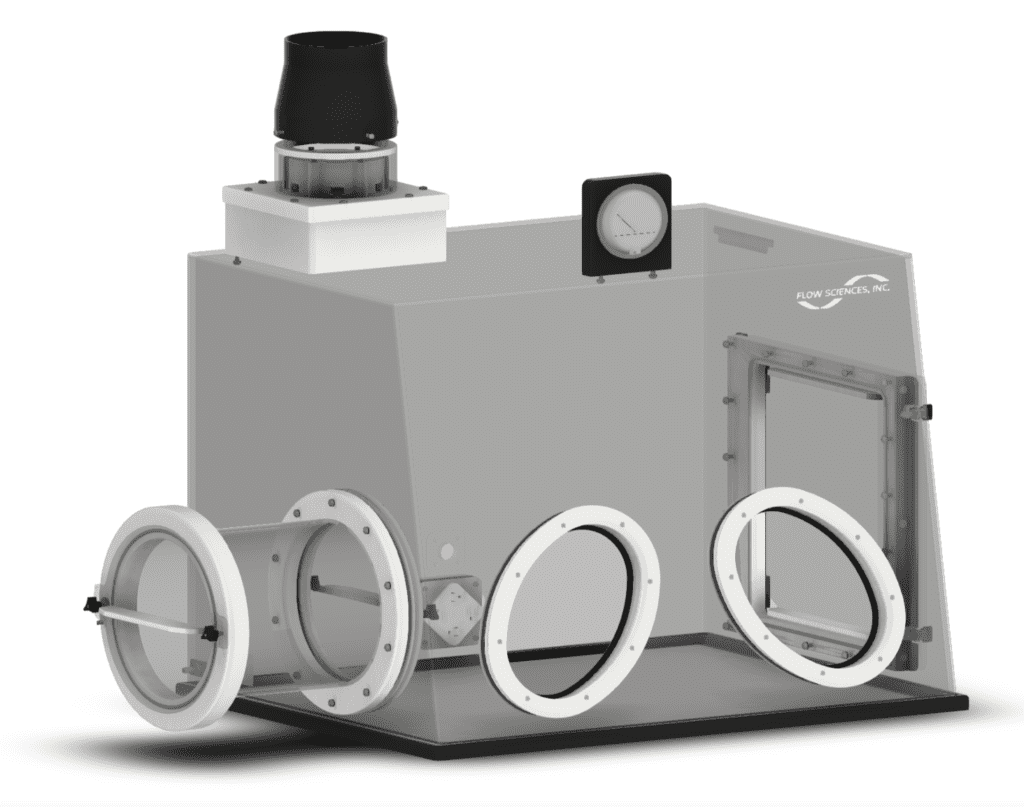

END362828ACK3
Polypropylene & Acrylic



3′ UNIT


36″ External Width (90.81cm)
30″ External Depth (29.38cm)
28″ Internal Height (69.22cm)

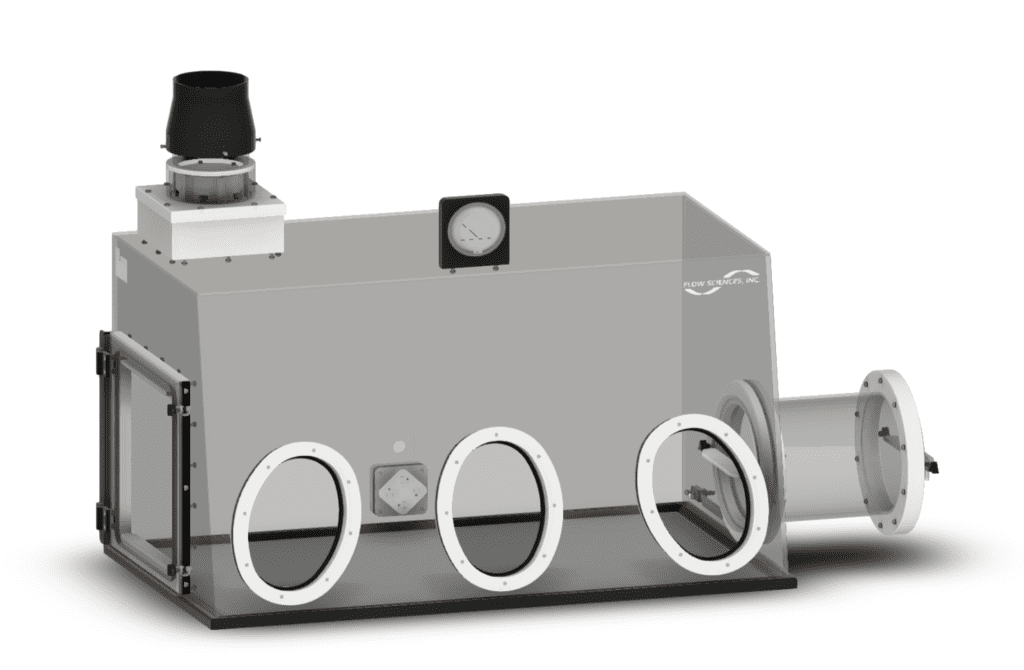

END482828ACK3
Polypropylene & Acrylic



4′ UNIT


48″ External Width (90.81cm)
30″ External Depth (29.38cm)
28″ Internal Height (69.22cm)

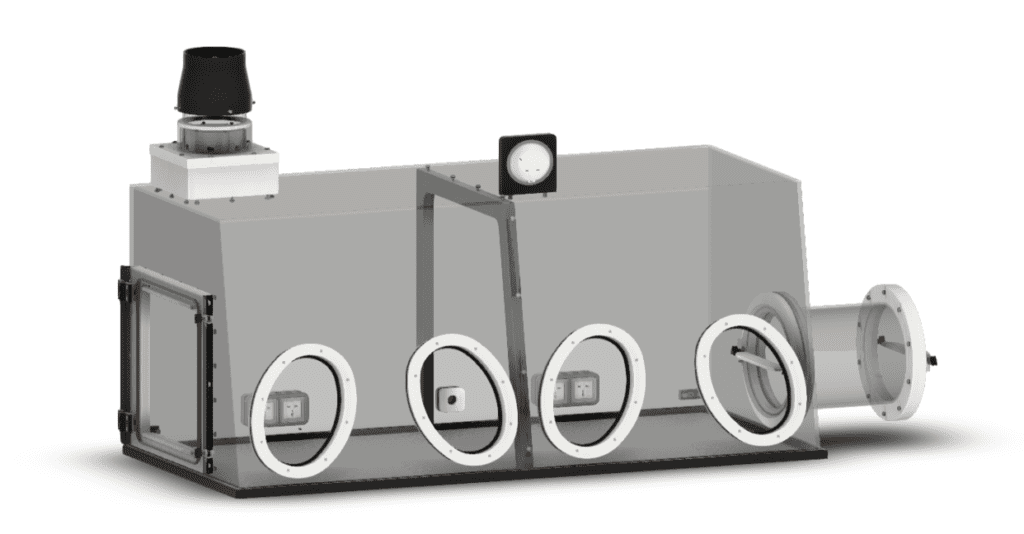

END602828ACK3
Polypropylene & Acrylic



5′ UNIT


60″ External Width (152.4 cm)
30″ External Depth (29.38cm)
28″ Internal Height (69.22cm)

CUSTOM NITROGENEMA™ GLOVEBOX SYSTEMS

Working with a specific piece of equipment? Our design history has led to many custom solutions created for equipment that
is highly likely to be similar or exact to your specific equipment.

Our sales, engineering, and project management staff begin by creating a unified understanding of every customer’s
process and goals through the completion of the Custom Quote Request Form.

Click on the form below to get started.
