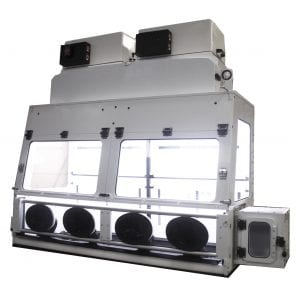

Hybrid Isolator

HYBRID ISOLATOR


Dual Purpose Contained
Vented Enclosure

Removable Glove Panel for Multiple Processes Applications
Two-Speed Fan Adjusts Face Opening Air Velocity
Surrogate Powder Testing Below 50 ng/m3
Polypropylene Frame with Acrylic or Glass Panels

PROCESS

Handling and manipulation of API (Active Pharmaceutical Ingredients) and HPAPIs (Highly Potent Active Pharmaceutical Ingredients) where personnel protection is required.

CONTAINMENT

Heavily dependent on potency and quantity of the toxic material being worked with, this unit can contain to nanogram levels and from OEB 3-5.

EQUIPMENT

The Glovebox Workstation can provide containment for many applications and equipment, including balances, ovens, FTIR, sieves, and many more.

FEATURES & BENEFITS

REMOVABLE GLOVE PANEL

The hybrid style of this unit is designed to be operated with or without the glove panel. This allows for the flexibility to use for varying applications depending on the process and quantity of potent material. Providing labs the ability to work with varying OEB (Occupational Exposure Banding) levels offering two enclosures in one.

SAFETY

The Hybrid Isolator series provides containment for highly toxic applications using APIs and HPAPIs. FSI engineering controls are built in to prevent loss of containment. Third Party testing has proven containment on these units to below 50 ng/m³ based on process and quantity.

DUAL SPEED FAN

This enclosure includes a two-speed adjustable fan that automatically switches between high and low speed depending on the draft shield being attached or unattached.

CONSTRUCTION

This unit comes standard with either acrylic (EHP Series) or glass (EHG Series) viewing panels, as well as a dished phenolic resin base and polypropylene superstructure.

LED LIGHT

This enclosure features an internal white LED light for improved visibility inside of the enclosure with adjustable angle to direct light onto the application. Also available in Amber LED

UNIVERSAL SIDE PORT / TRANSFER PORT

Side port with universal options including double-safe waste chute, continuous liner, RTP port, and more through customization. The side port and transfer port can be moved to either side. The transfer port provided ingress and egress of items into and out of the enclosure without exposing the operator or the interior environment to contamination.

DUAL HEPA FILTRATION

The Hybrid Isolator system is equipped with primary and secondary 4” HEPA filters that can be recirculated into the lab or sent directly to house exhaust.

BASE / TOP OPTIONS

Standard options for the base include a regular base, bulk powder base to accept drum sizes, regular base with a 4″ tri-clover/tri-clamp fitting to accept powder transfer options, as well as a standard option to purchase the unit without a base so a custom base can be applied.

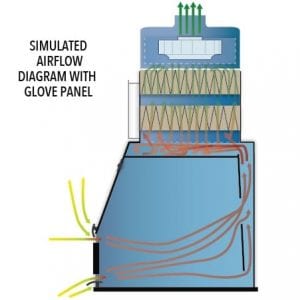

IMPROVED AIRFLOW DESIGN

The proper evacuation of toxic material through airflow is crucial to performance and containment. The Hybrid Isolator offers an innovative airflow design to maximize containment and reduce energy consumption.

STANDARD OPTIONS

STANDARD SIZES

The Hybrid Isolator is available in 3, 4, 5, 6, and 8 foot standard width options. All units are 30” deep with 27” of internal height. Customization available.



VIEWING PANELS

Available in Acrylic or Glass. Custom Options Include Amber Acrylic and other Material Options



EXHAUST OPTIONS

Fan with 6″ Exhaust Port to Recirculate or Connect to House Exhaust; Fan with a Mesh Top for Wide Air Distribution (Used in Short Ceiling Rooms)

BASE OPTIONS

Standard Base; Bulk Powder; Tri-Clover Male (Female Sold Separately); No Base (Custom Base Purchased Separately for Drop Sinks, Multiple Ports or Fittings, and more)

ELECTRICAL OPTIONS

110V-120V 50-60HZ; 220V-240V 50-60HZ with Integrated Alarm and Dual Speed Fan

FILTRATION

Bag-In/Bag-Out (BIBO) Dual 4″ Pleated HEPA Filtration or Dual ULPA Filtration

AVAILABLE ACCESSORIES

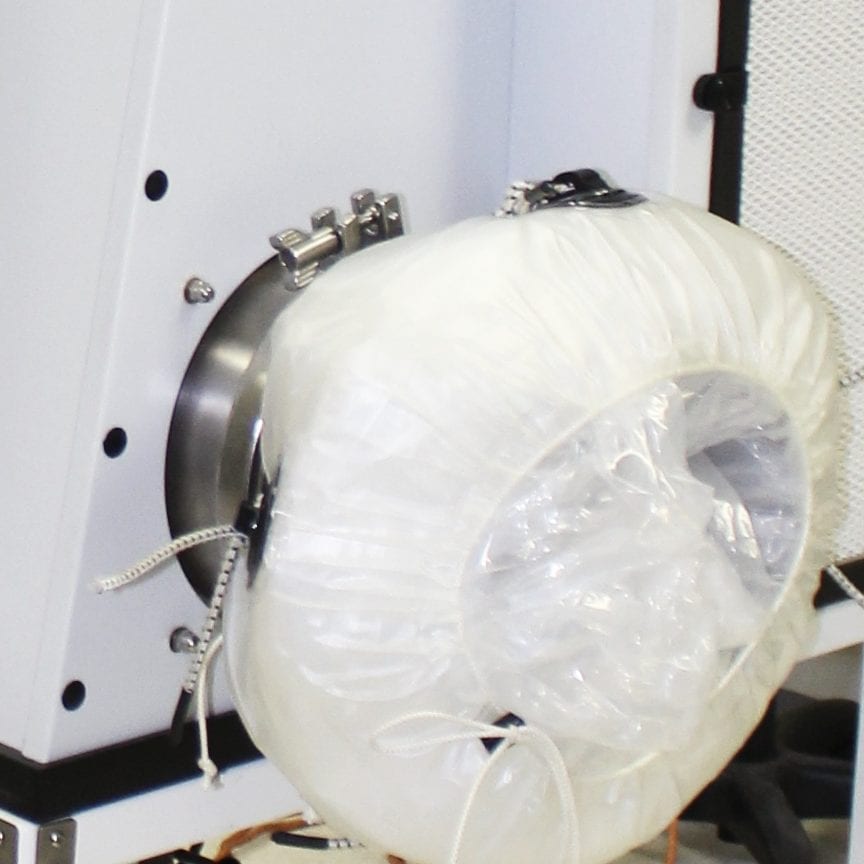

CONTINUOUS LINER

FS2092 & APS0825 – Designed to eliminate cross contamination of powders, protecting the person, plant, and product. Long lengths of pre-packaged liners reduce operator labor.

RTP ALPHA PORT

FS2093 – Accommodates a 105mm RTP Alpha port for connecting various betas or other containers.

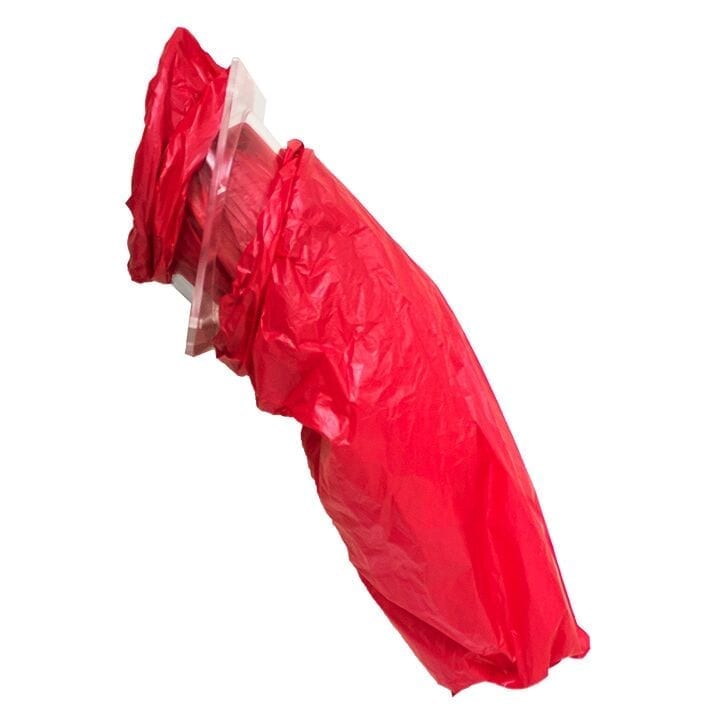

DOUBLE SAFE
WASTE CHUTE

FS2091 – Double Bag system for disposal of waste or other materials. Designed specifically for the universal/master port of the EHP and EHG.

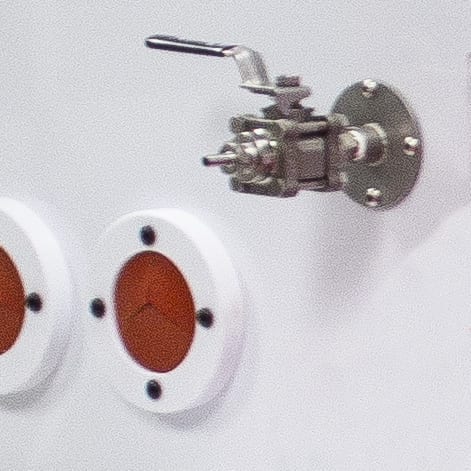

CUSTOMIZED MASTER PORT

The blank plate can be customized to install iris ports, services, transfer systems, and more.

POPULAR CONFIGURATIONS

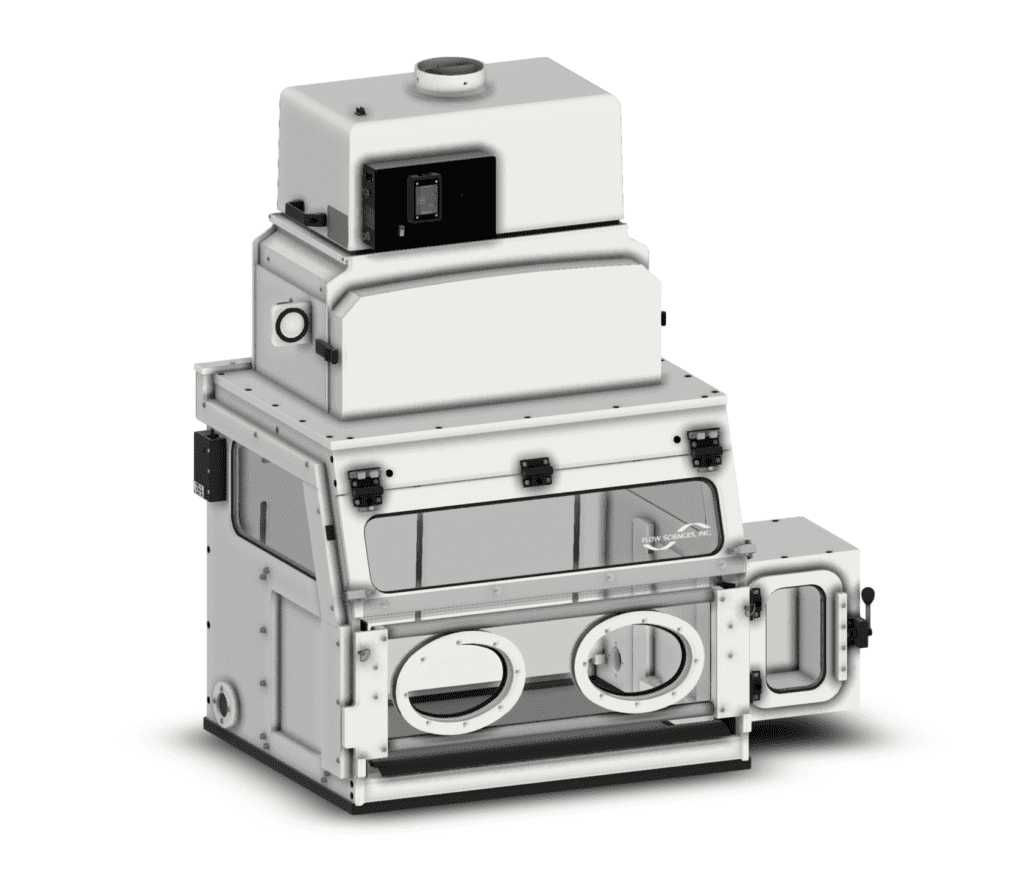

EHP363027ABD
Polypropylene & Acrylic

EHG363027ABD
Polypropylene & Glass

3′ HYBRID ISOLATOR


36″ External Width (908mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

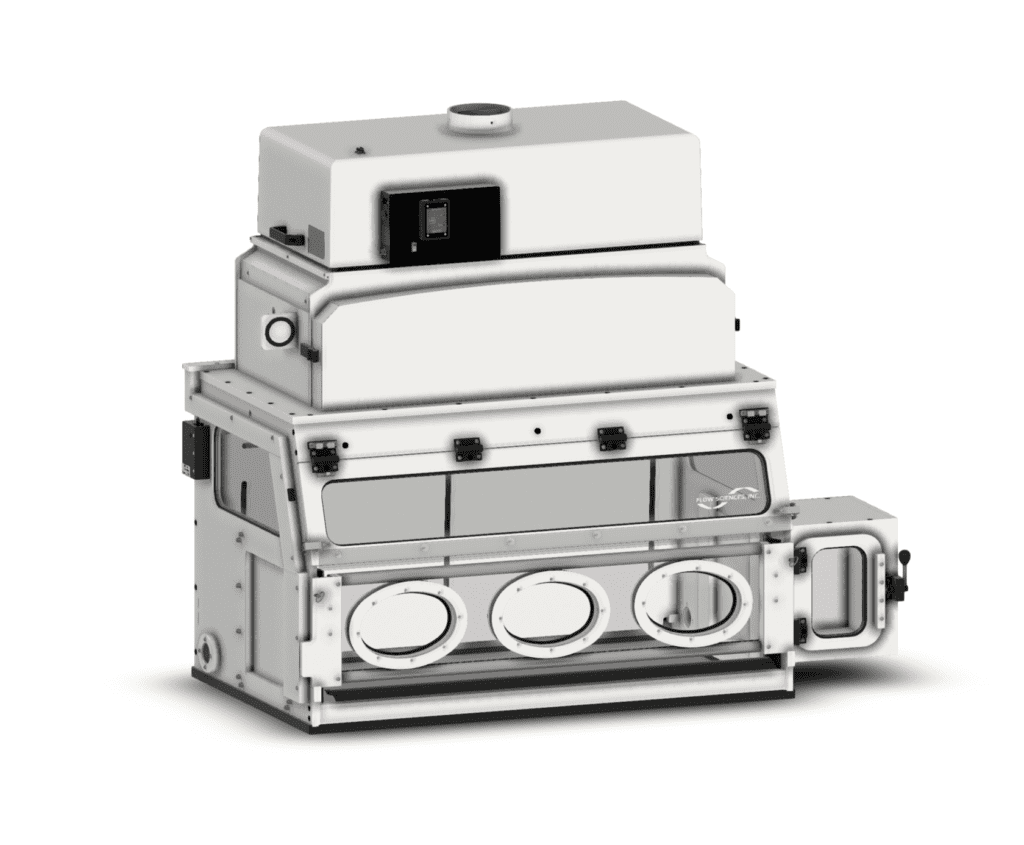

EHP483027ABD
Polypropylene & Acrylic

EHG483027ABD
Polypropylene & Glass

4′ HYBRID ISOLATOR


48″ External Width (1219mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

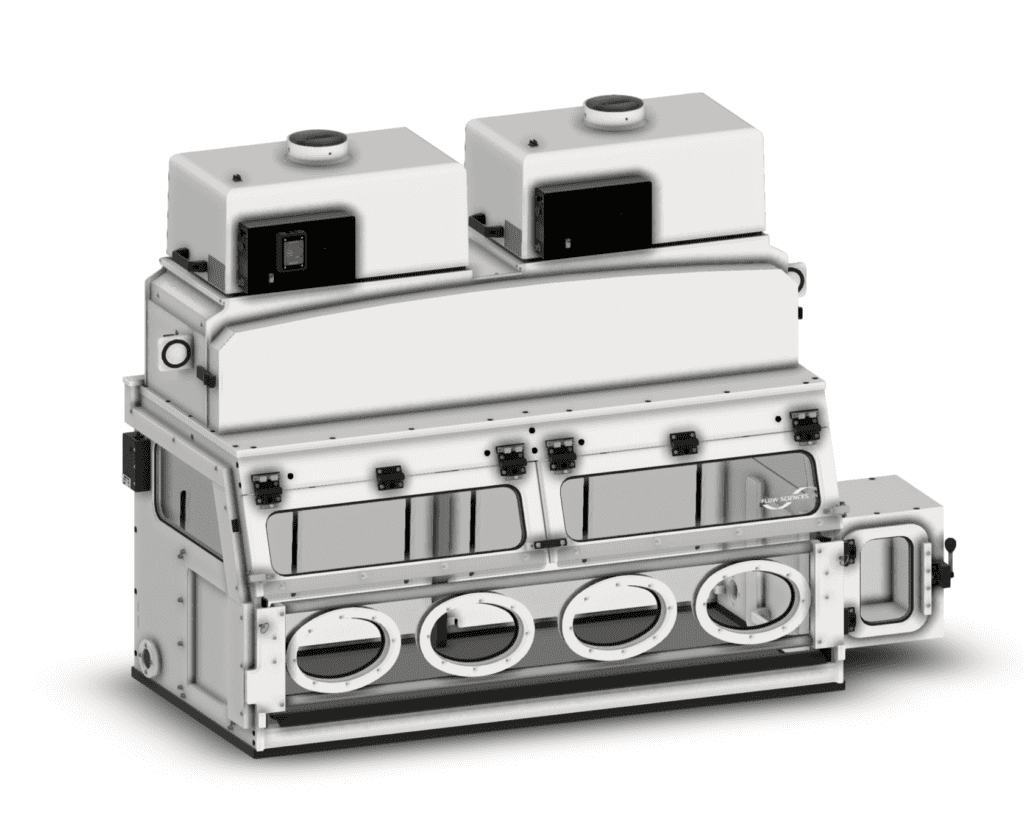

EHP603027ABD
Polypropylene & Acrylic

EHG603027ABD
Polypropylene & Glass

5′ HYBRID ISOLATOR


60″ External Width (1524mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

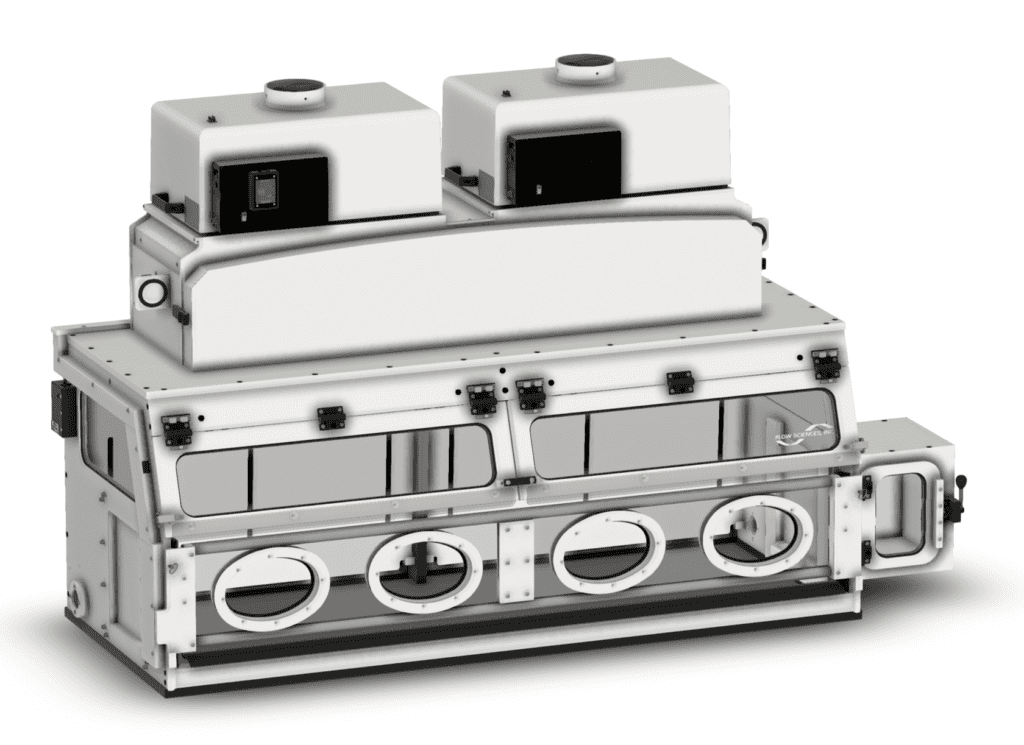

EHP723027ABD
Polypropylene & Acrylic

EHG723027ABD
Polypropylene & Glass

6′ HYBRID ISOLATOR


72″ External Width (1829mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

EHP723027BBD
Polypropylene & Acrylic

EHG723027BBD
Polypropylene & Glass

6′ BULK POWER HYBRID ISOLATOR


72″ External Width (1829mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

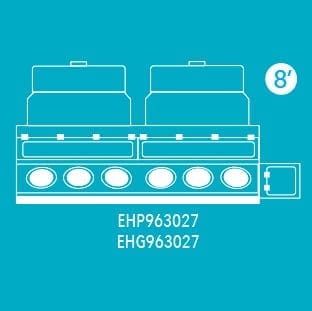

EHP963027ABD
Polypropylene & Acrylic

EHG963027ABD
Polypropylene & Glass

8′ HYBRID ISOLATOR


96″ External Width (2438mm)
30″ External Depth (762mm)
27″ Internal Height (686mm)

CUSTOM HYBRID ISOLATOR SYSTEMS

Working with a specific piece of equipment? Our design history has led to many custom solutions created for equipment that
is highly likely to be similar or exact to your specific equipment.

Our sales, engineering, and project management staff begin by creating a unified understanding of every customer’s
process and goals through the completion of the Custom Quote Request Form.
