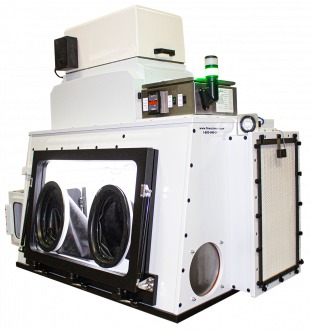

Glovebox Workstation

Dimensions & Face Velocity Requirements for Our Standard EGP/A Series

Dimensions

Imperial Units (Inches)

EG Dimensions (inches)
Model	Fan Type	Ext. Width	Ext. Depth	Ext. Height	Int. Width	Int. Depth	Int. Height	Face Opening Width	Face Opening Height
EGP48 & EGG48	REGULAR	66.66	34.05	55.91	45.75	23.81	24.75	12.50	22.50
	MESH	66.66	34.05	53.91	45.75	23.81	24.75	12.50	22.50
	NONE	66.66	34.05	52.31	45.75	23.81	24.75	12.50	22.50
EGP60 & EGG60	REGULAR	78.50	34.05	55.91	45.75	23.81	24.75	12.50	22.50
	MESH	78.50	34.05	53.91	45.75	23.81	24.75	12.50	22.50
	NONE	78.50	34.05	52.31	45.75	23.81	24.75	12.50	22.50
EGP72 & EGG72	REGULAR	90.50	34.05	55.91	45.75	23.81	24.75	12.50	22.50
	MESH	90.50	34.05	53.91	45.75	23.81	24.75	12.50	22.50
	NONE	90.50	34.05	52.31	45.75	23.81	24.75	12.50	22.50

Metric Units (MM)

EG Dimensions (mm)
Model	Fan Type	Ext. Width	Ext. Depth	Ext. Height	Int. Width	Int. Depth	Int. Height	Face Opening Width	Face Opening Height
EGP48 & EGG48	REGULAR	1693	865	1420	1162	605	629	318	572
	MESH	1693	865	1369	1162	605	629	318	572
	NONE	1693	865	1329	1162	605	629	318	572
EGP60 & EGG60	REGULAR	1994	865	1420	1162	605	629	318	572
	MESH	1994	865	1369	1162	605	629	318	572
	NONE	1994	865	1329	1162	605	629	318	572
EGP72 & EGG72	REGULAR	2299	865	1420	1162	605	629	318	572
	MESH	2299	865	1369	1162	605	629	318	572
	NONE	2299	865	1329	1162	605	629	318	572

Airflow Requirements

Imperial Units (CFM)

EG Airflow (CFM)
		HOUSE		RECIRCULATING
Model	Fan Type	@100FPM	@75FPM	@100FPM	@75FPM
EGP & EGG All Sizes	REGULAR	292	219	254	191
	MESH	N/A	N/A	254	191
	NONE	254	191	N/A	N/A

Metric Units (m³/h)

EG Airflow (m3/h)
		HOUSE		RECIRCULATING
Model	Fan Type	@0.5m/s	@0.38m/s	@0.5m/s	@0.38m/s
EGP & EGG All Sizes	REGULAR	494	370	429	322
	MESH	N/A	N/A	429	322
	NONE	429	322	N/A	N/A
