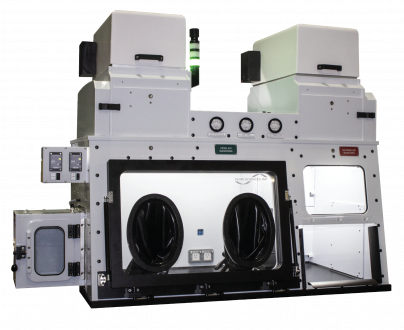

Analytical Process Isolator

Dimensions & Face Velocity Requirements for Our Standard ECP/G Series

Dimensions

Imperial Units (Inches)

EC Dimensions (inches)
Model	Fan Type	Ext. Width	Ext. Depth	Ext. Height	Side	Int. Width	Int. Depth	Int. Height	Face Opening Width	Face Opening Height
ECP60 & ECG60	REGULAR	78.73	39.05	55.91	Glovebox	37.56	28.81	24.75	12.50	22.50
	MESH	78.73	39.05	53.91	Open Face	17.44	30.05	26.25	17.44	10.44
	NONE	78.73	39.05	52.31
ECP72 & ECG72	REGULAR	90.73	39.05	55.91	Glovebox	49.56	28.81	24.75	12.50	22.50
	MESH	90.73	39.05	53.91	Open Face	17.44	30.05	26.25	17.44	10.44
	NONE	90.73	39.05	52.31
ECP84 & ECG84	REGULAR	102.73	39.05	55.91	Glovebox	61.56	28.81	24.75	12.50	22.50
	MESH	102.73	39.05	53.91	Open Face	17.44	30.05	26.25	17.44	10.44
	NONE	102.73	39.05	52.31

Metric Units (MM)

EC Dimensions (mm)
Model	Fan Type	Ext. Width	Ext. Depth	Ext. Height	Side	Int. Width	Int. Depth	Int. Height	Face Opening Width	Face Opening Height
ECP60 & ECG60	REGULAR	2000	992	1420	Glovebox	954.02	731.77	628.65	317.50	571.50
	MESH	2000	992	1369	Open Face	442.98	763.27	666.75	442.98	265.18
	NONE	2000	992	1329
ECP72 & ECG72	REGULAR	2305	992	1420	Glovebox	1258.82	731.77	628.65	317.50	571.50
	MESH	2305	992	1369	Open Face	442.98	763.27	666.75	442.98	265.18
	NONE	2305	992	1329
ECP84 & ECG84	REGULAR	2609	992	1420	Glovebox	1563.62	731.77	628.65	317.50	571.50
	MESH	2609	992	1369	Open Face	442.98	763.27	666.75	442.98	265.18
	NONE	2609	992	1329

Airflow Requirements

Imperial Units (CFM)

EC Airflow (CFM)
			HOUSE		RECIRCULATING
Model	Side	Fan Type	@100FPM	@75FPM	@100FPM	@75FPM
ECP&ECG All Sizes	Glovebox	REGULAR	292	219	254	191
		MESH	N/A	N/A	254	191
		NONE	254	191	N/A	N/A
	Open	REGULAR	167	125	145	109
		MESH	N/A	N/A	145	109
		NONE	145	109	N/A	N/A

Metric Units (m³/h)

EC Airflow (m3/h)
			HOUSE		RECIRCULATING
Model	Side	Fan Type	@0.5m/s	@0.38m/s	@0.5m/s	@0.38m/s
ECP&ECG All Sizes	Glovebox	REGULAR	494	370	429	322
		MESH	N/A	N/A	429	322
		NONE	429	322	N/A	N/A
	Open	REGULAR	282	211	245	184
		MESH	N/A	N/A	167	125
		NONE	245	184	N/A	N/A
